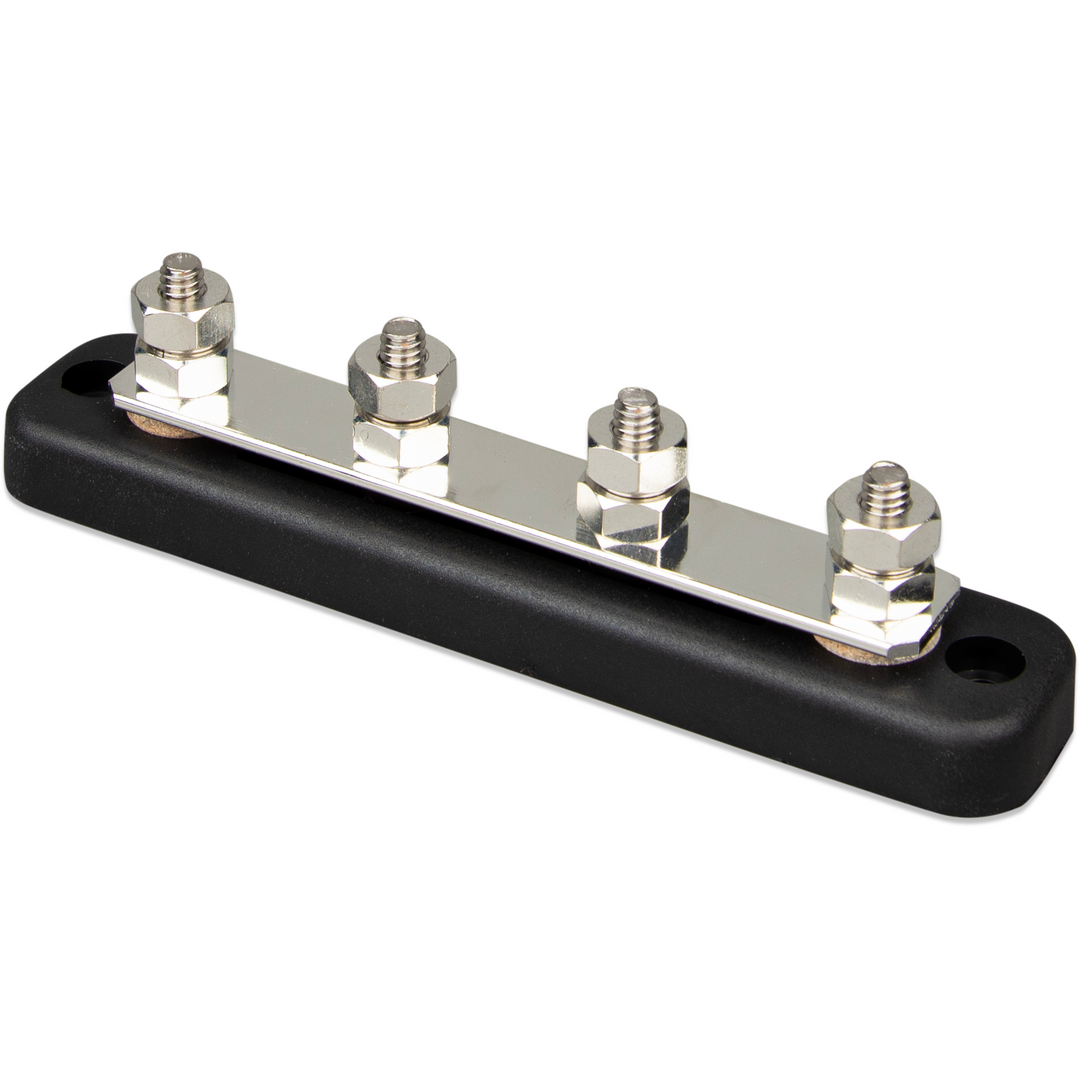

Victron Busbar 150A 4P + Cover
Regular price$32.00
/
Tax included.
The Busbar 150A 4P + Cover from Victron Energy is designed to provide a centralized point for electrical connections. It comes with a clear polycarbonate cover for protection and safety.
Features
- High Current Capacity: Can handle up to 150A of current.
- Durable Construction: Made with stainless steel terminals and tin-plated copper for the busbar strip.
- Safety Cover: Comes with a clear polycarbonate cover, ensuring safety and protection from accidental contact.
- Versatile Mounting: Designed for easy and secure mounting.
Specifications
- Max. Current: 150 A
- Max. Voltage: 70 VDC
- Terminal Diameter: ¼ inch / 6.35 mm
- Terminal Height: 0.67 inch / 17 mm
- Terminal Material: Stainless steel
- Hex Nut Material: Tin-plated copper
- Recommended Torque: 60 lbf·inch / 7 N·m
- Busbar Strip Material: Tin-plated copper (1.4 x 18 mm)
- Base Material: ABS, black, UL 94 V-0
- Cover Material: Clear Polycarbonate, UL 94 HB
- Weight (4 terminals): 0.4 lb / 0.2 kg
- Dimensions (HxWxD) with cover: 1.8 x 6.0 x 1.25 inch (45 x 152.4 x 31.8 mm)
Shipping
- Weight: 0.4 lb / 0.2 kg
Warranty
- This product comes with a 5-year warranty.
