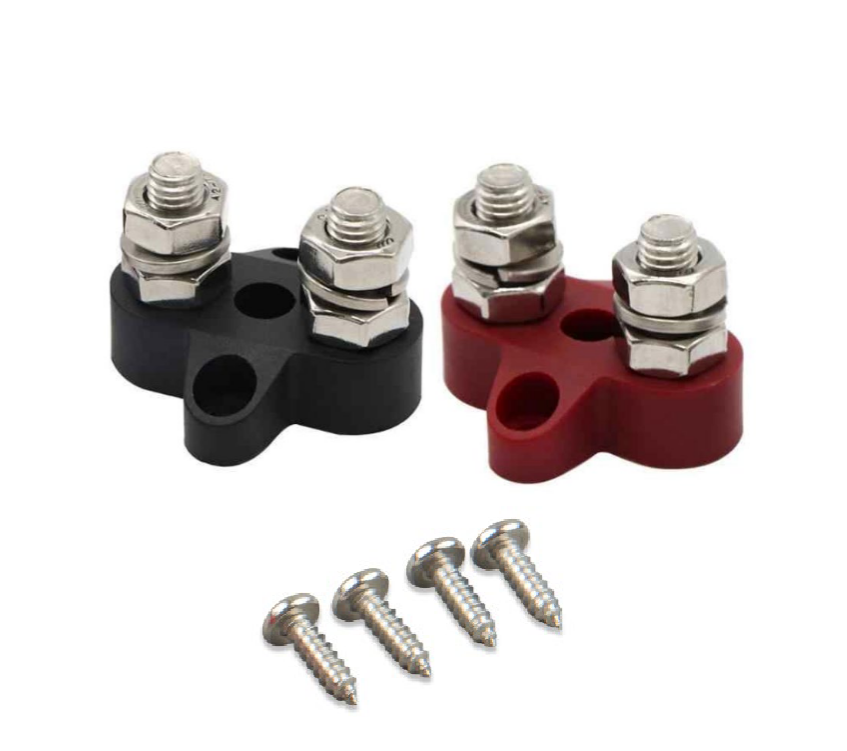

Dual-Terminal Stud M8 (5/16″) (pair)

The Victron Dual-Terminal Stud M8 is a high-quality stud connector designed for robust DC power distribution systems. Ideal for integration into battery banks, busbar assemblies, or other high-current setups, this component offers dual terminals on a single mounting base to streamline wiring and improve connection efficiency.

Features

• Dual terminal configuration (one stud, two connection points) to simplify wiring and reduce component count.

• Stainless steel studs and hex nuts for durability and excellent corrosion resistance.

• Mounted on a tin-plated copper busbar strip (1.0 × 13 mm) for excellent conductivity and low resistance.

• Compact, rugged base material made of glass fibre-reinforced nylon for insulation and mechanical stability.

• Rated for up to 150 A continuous and voltages up to 70 V DC — suitable for many energy storage, solar, and off-grid system applications.

• Recommended torque of 10 N·m (≈ 90 lbf·inch) ensures secure and reliable terminal connections.

Specifications

• Maximum Current: 150 A

• Maximum Voltage: 70 V DC

• Terminal Diameter: M8 (5/16″)

• Terminal Height: 17 mm (0.67″)

• Terminal Material: Stainless Steel

• Hex Nut Material: Stainless Steel

• Busbar Strip Material: Tin-plated Copper (1.0 × 13 mm)

• Base Material: Glass Fibre Reinforced Nylon

• Weight: 70 g

• Dimensions (H × W × D): 45 × 43 × 32 mm (1.8 × 1.7 × 1.3″)

• Recommended Torque: 10 N·m (90 lbf·inch)

Applications
Ideal for use in DC power distribution systems where space is at a premium and multiple connections from a common stud are required. Common applications include battery banks, solar installations, marine systems, off-grid power setups, and any project requiring a compact, reliable dual-terminal configuration.

Why Choose This Stud

• Simplifies wiring: dual terminals reduce the number of separate connection points.

• High-current capability: 150 A rating gives headroom for many demanding systems.

• Proven materials: stainless steel, tin-plated copper, and reinforced nylon ensure longevity and reliability.

• Trusted brand: Victron is known for rugged, well-engineered components in power systems.
