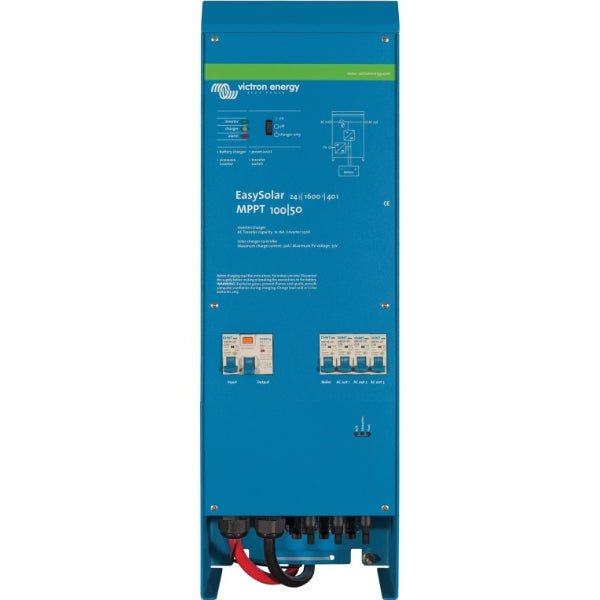

Victron EasySolar 24/1600/40-16 MPPT 100/50

The EasySolar 24/1600/40-16 MPPT 100/50 is the all-in-one solar power solution from Victron Energy. It combines a MPPT solar charge controller, an inverter/charger, and AC distribution in one enclosure, making installations simpler with minimal wiring. The product is designed to be efficient, user-friendly, and versatile for various applications.

Features

• All-in-one solar power solution: Combines MPPT solar charge controller, inverter/charger, and AC distribution.
• Solar charge controller: Blue Solar MPPT 100/50 with up to three strings of PV panels connectable.
• Inverter/Charger: MultiPlus Compact 24/1600/40.
• AC distribution: Includes a RCD (30 mA/16 A) and four AC outputs protected by circuit breakers.
• PowerAssist: Protects utility or generator supply from being overloaded by adding extra inverter power when needed.
• Unique solar application software: Configurable for various grid-interactive or stand-alone applications.
• VE.Direct interface: For monitoring and configuration.

Specifications

• Inverter/Charger:
  • Input voltage range: 19 – 33V
  • Output voltage: 230 VAC ± 2%
  • Frequency: 50 Hz ± 0,1%
  • Continuous output power at 25°C: 1600VA / 1300W
  • Continuous output power at 40°C: 1200W
  • Peak power: 3000W
  • Maximum efficiency: 94%
  • Zero load power: 10W
  • Charge voltage 'absorption': 28.8V
  • Charge voltage 'float': 27.6V
  • Charge current: 40A
• Solar Charge Controller (MPPT 100/50):
  • Maximum output current: 50A
  • Maximum PV power: 1400W
  • Maximum PV open circuit voltage: 100V
  • Maximum efficiency: 98%
  • Charge voltage 'absorption': 28.8V
  • Charge voltage 'float': 27.6V
• General:
  • Operating temperature range: -20 to +50°C (fan assisted cooling)
  • Humidity: max 95% (non-condensing)
  • Weight: 15kg
  • Dimensions (HxWxD): 745 x 214 x 110mm

Shipping

• Weight: 15kg

Warranty

• This product comes with a 5-year warranty.
