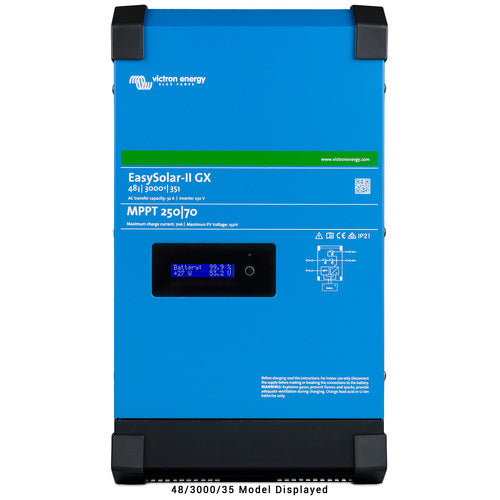

Victron EasySolar-II 48/5000/70-50 MPPT 250/100 GX
The EasySolar-II GX combines a MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.
The all-in-one Solar Power Solution
The Victron EasySolar-II GX integrates the following elements:
- A MultiPlus-II 48/5000/70-50 inverter/charger
- A SmartSolar 250/100 MPPT -Tr solar charge controller
- A GX device with a 2 x 16-character display.
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.
Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters.The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.
In addition, Wi-Fi can be used to set up the system and to change settings.
Solar Charge Controller
The DC output of the SmartSolar 250/100 MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.
The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
GX Device
The integrated GX device includes:
- A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
- A USB port
- An Ethernet port
- A VE.Direct port
- The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
