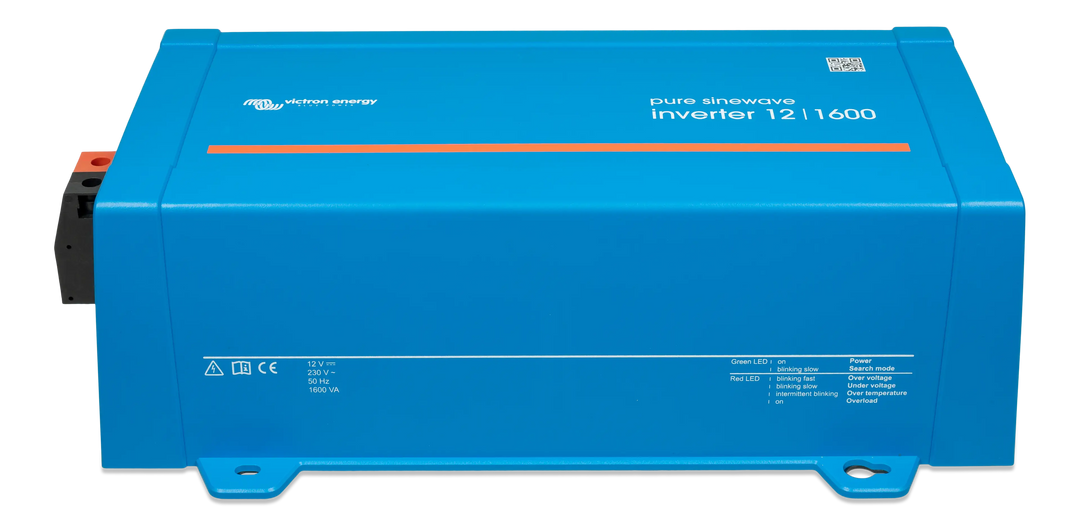

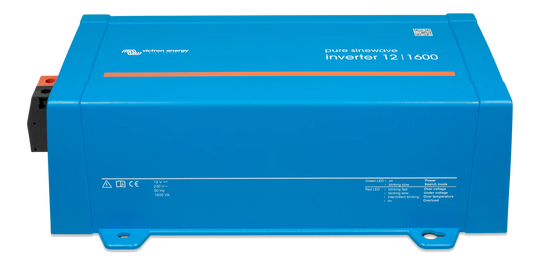

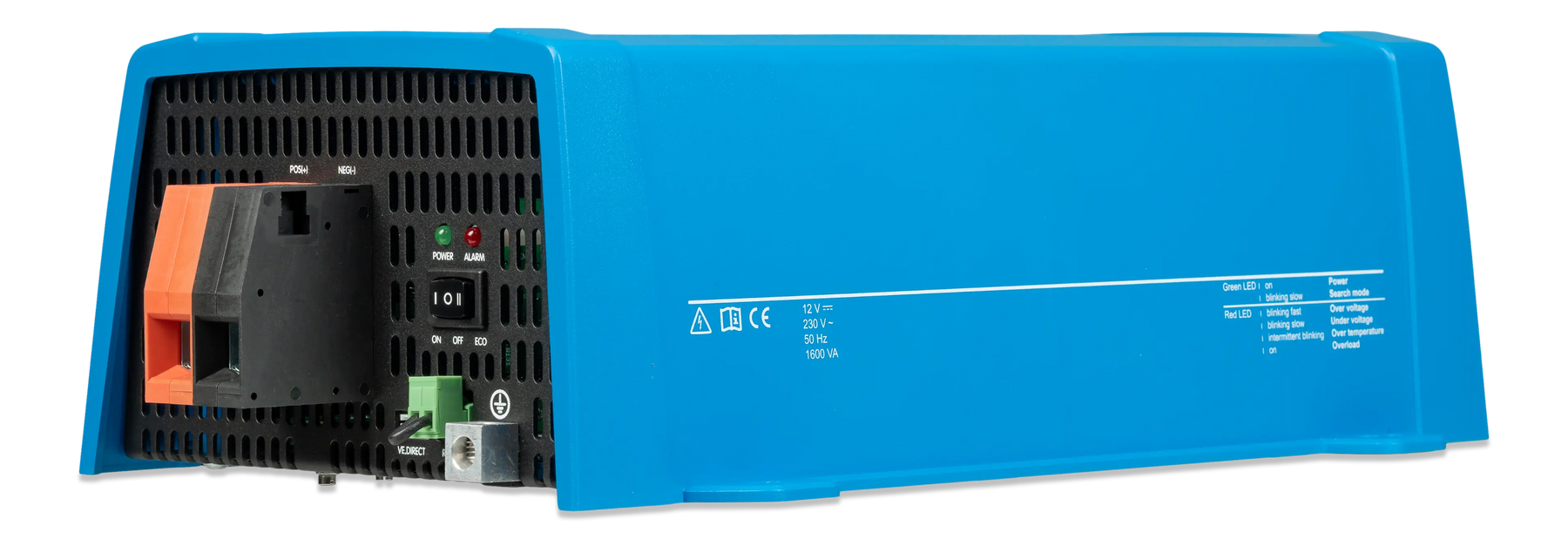

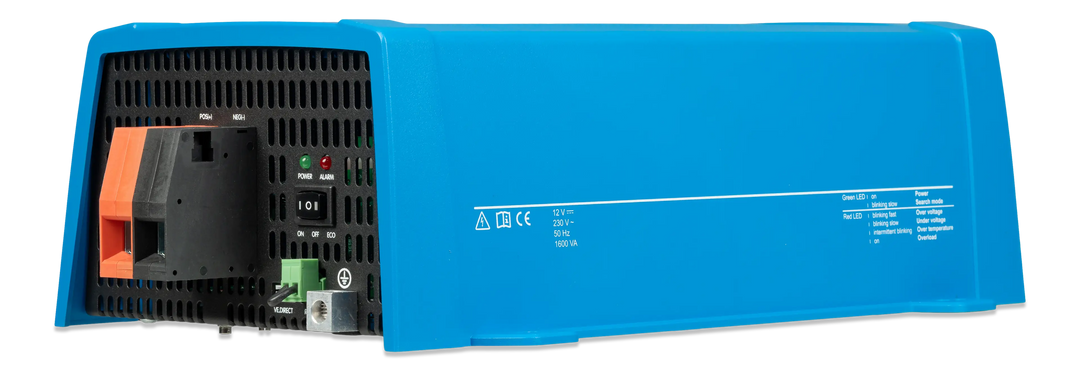

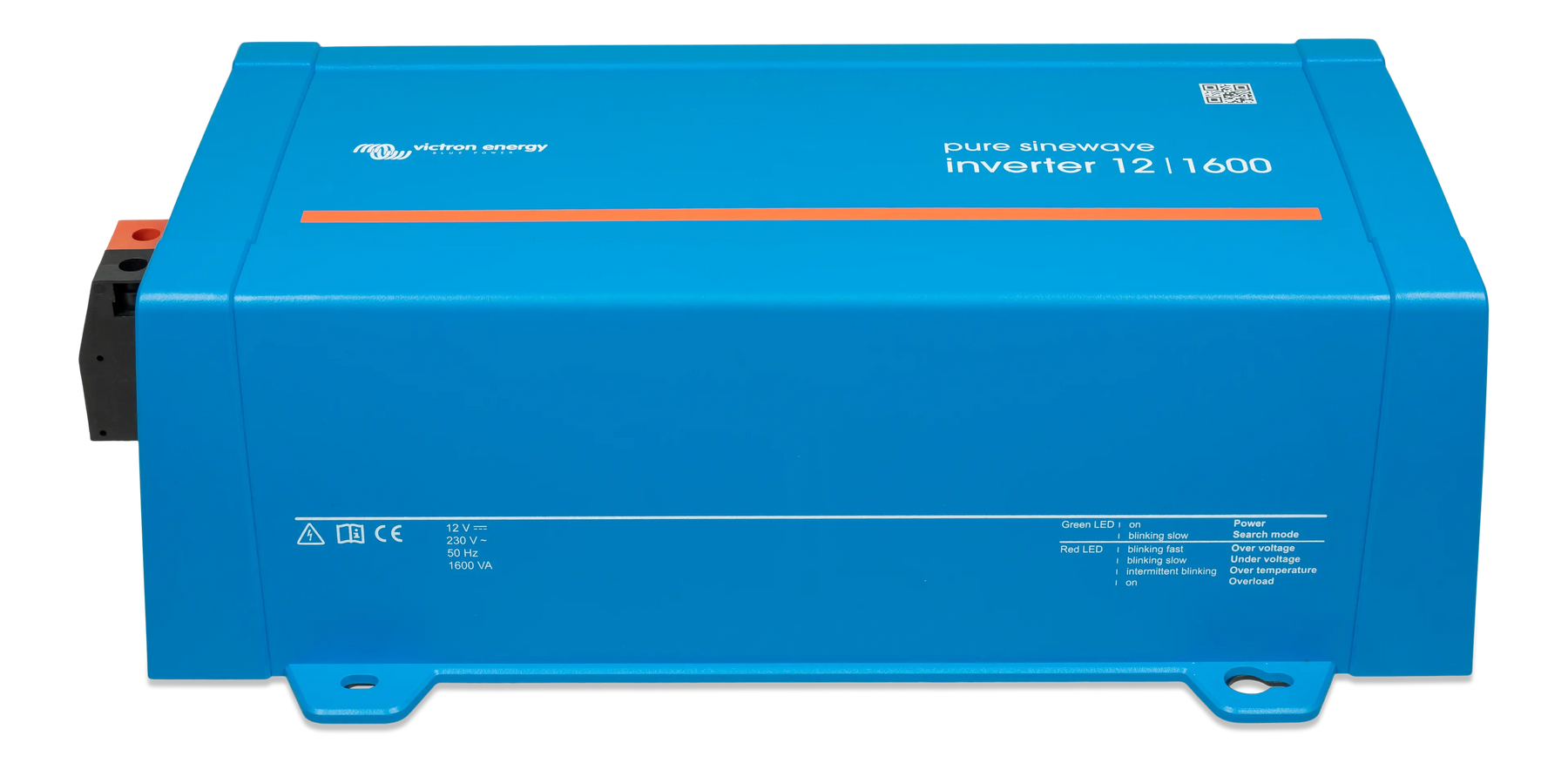

Inverter 12/1600 230V VE.Direct AU/NZ

The Victron Phoenix Inverter 12/1600 is a high-quality pure sine wave inverter designed to deliver reliable 230 V AC power from a 12 V battery system. Built for off-grid, mobile, and backup applications, it’s ideal for caravans, RVs, boats, and remote setups needing dependable energy conversion with minimal power loss.

Key Features

• Pure sine wave output – safe for sensitive electronics and appliances

• Converts 12 V DC battery power into 230 V AC

• VE.Direct communication port for monitoring and setup via VictronConnect app (requires additional VE.Direct Smart Bluetooth dongle.)

• ECO mode for ultra-low standby consumption

• High surge capacity for starting tools, pumps, and compressors

• Fully protected against overload, over-temperature, short circuit, and low battery

• Compact, rugged steel construction with AU/NZ 230 V socket

• Quiet operation with temperature-controlled cooling fan

Technical Specifications

• Continuous output power (25 °C): approx. 1300 W / 1600 VA

• Continuous output power (40 °C): approx. 1200 W

• Peak power: up to 3000 W

• Input voltage range: 9.3 V – 17 V DC

• Output voltage: 230 V AC ±2 %

• Output frequency: 50 Hz (or 60 Hz selectable)

• Maximum efficiency: up to 92 %

• No-load consumption: ~8 W (0.6 W in ECO mode)

• Operating temperature: -40 °C to +65 °C (derating above 40 °C)

• Weight: approx. 8.9 kg

• Dimensions: 117 × 231 × 395 mm (H × W × D)

Applications

• Off-grid solar and battery systems

• Caravans, RVs, and motorhomes

• Marine and boating power systems

• Backup power for cabins and remote buildings

• Powering small tools and appliances with high startup loads
