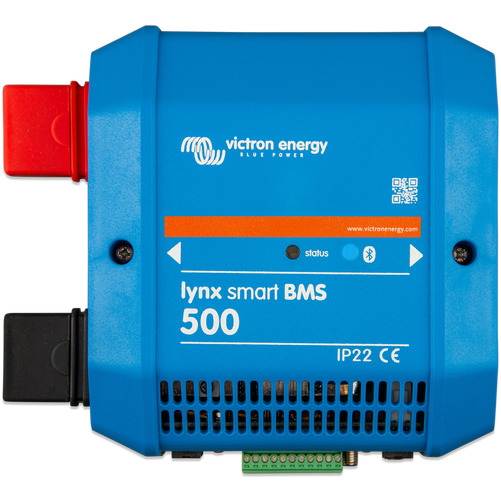

Victron Lynx Smart BMS 500 (M8)

The Lynx Smart BMS is a dedicated Battery Management System (BMS) for the Victron Lithium Battery Smart batteries. These batteries are Lithium Iron Phosphate (LiFePO4) batteries and are available in 12.8 V or 25.6 V in various capacities. They can be connected in series, parallel, and series/parallel. The Lynx Smart BMS is the most feature-rich and complete option and integrates seamlessly into the Lynx Distributor system. It is available in 500 A (M8) and 1000 A (M10) versions.

Features

• Built-in 500 A or 1000 A contactor.
• Pre-charge circuit.
• Monitoring and control via Bluetooth using the VictronConnect App or a GX device.
• DVCC closed loop control as well as ATC/ATD contacts.
• Programmable relay.
• AUX terminal.
• VE.Can and NMEA 2000 data communication.
• Lynx Distributor fuse monitoring.

Specifications

• Battery voltage range 9 – 60 VDC
• Maximum input voltage 75 VDC
• Supported system voltages 12, 24 or 48 V
• Main safety contactor continuous current rating 500 A continuous
• Main safety contactor peak current rating 600 A for 5 minutes
• Power consumption OFF mode 0.3 mA for all system voltages
• Power consumption in ON mode Approx. 2.6 W (217 mA at 12 V)
• AUX output maximum current rating 1.1 A continuous
• Busbar M8 (Torque: 14 Nm)
• Enclosure material ABS
• Enclosure dimensions (HxWxD) 190 x 180 x 80 mm
• Unit weight 1.9 kg
• Busbar material Tinned copper
• Busbar dimensions (HxW) 8 x 30 mm
• Operating temperature range -40°C to +60°C
• Protection class IP22

Shipping

• Weight 1.9 kg

Warranty

• This product comes with a 5-year warranty.
