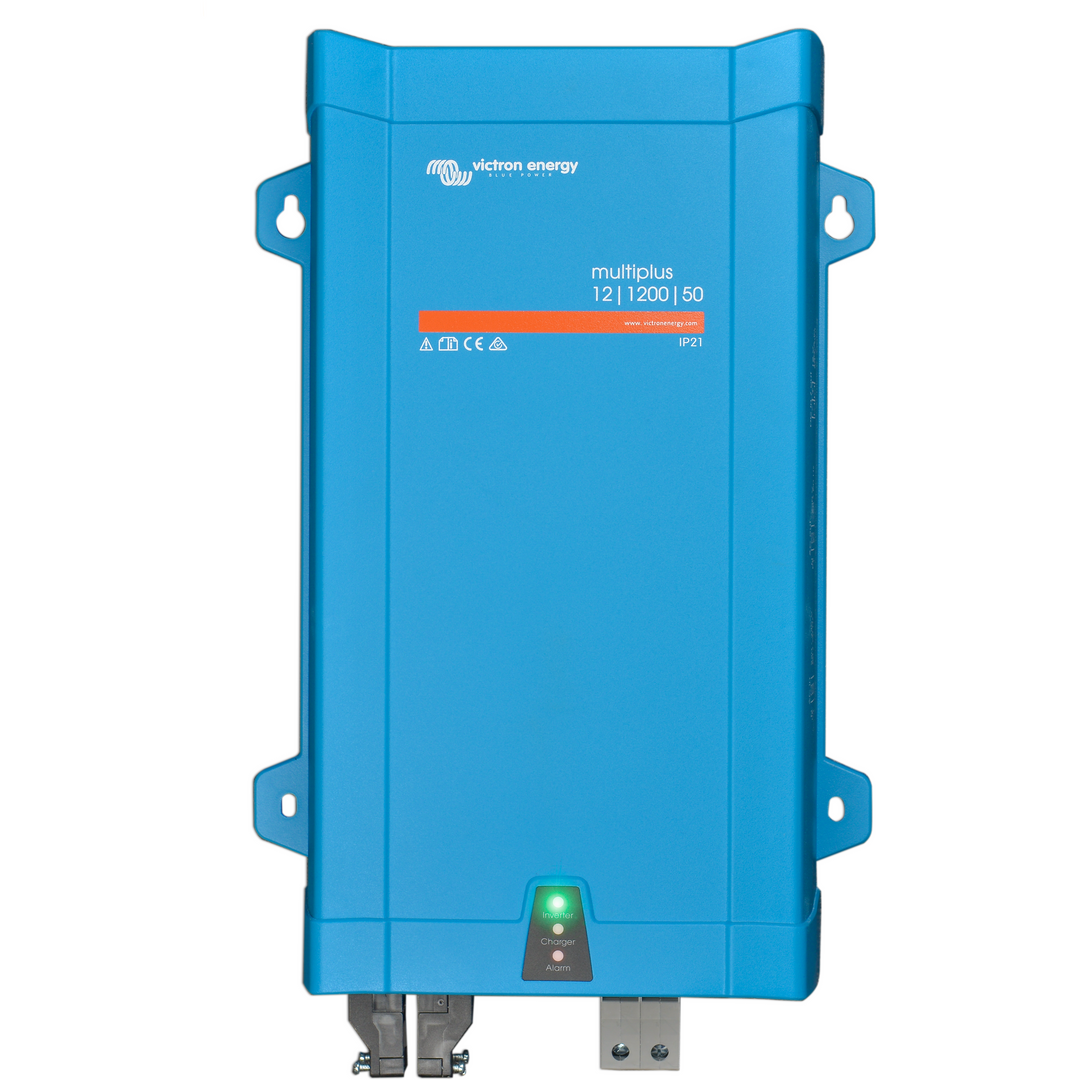

Victron MultiPlus 12/1200/50-16

The MultiPlus 12/1200/50-16 is a powerful inverter/charger from Victron Energy. It offers the benefits of a sine wave inverter, adaptive battery charger, high-speed AC transfer switch, and PowerAssist technology in one compact system. The MultiPlus ensures uninterrupted AC power and can supplement grid or generator power with inverter power when needed.

Features

• PowerControl: Manages limited generator, shore side, or grid power.
• PowerAssist: Boosts the capacity of shore or generator power by adding extra inverter power when needed.
• Two AC Outputs: The main output provides a no-break functionality, ensuring uninterrupted power. The second output is live only when AC is available on the input.
• Parallel Operation: Up to 6 MultiPlus units can operate in parallel for higher power output.
• Three Phase Capability: Three units can be configured for three-phase output.
• Remote Monitoring and Control: Through various interfaces like the Digital Multi Control Panel, Color Control GX, and other GX devices.
• Programmable Relay: Can be set for general alarm, DC under voltage, or genset start/stop function.

Specifications

• Inverter:
  • Input voltage range: 9.5 – 17 V
  • Output voltage: 230 VAC ± 2%
  • Frequency: 50 Hz ± 0.1%
  • Continuous output power at 25°C: 1200 VA / 1000 W
  • Continuous output power at 40°C: 900 W
  • Peak power: 2400 W
  • Maximum efficiency: 93 / 94%
  • Zero load power: 8 / 10 W
  • Zero load power in AES mode: 5/8 W
  • Zero load power in Search mode: 2/3 W
• Charger:
  • Input voltage range: 187-265 VAC
  • Input frequency: 45 – 65 Hz
  • Charge voltage 'absorption': 14.4 V
  • Charge voltage 'float': 13.8 V
  • Storage mode: 13.2 V
  • Charge current: 50 A
• General:
  • Operating temperature range: -40 to +65°C (fan assisted cooling)
  • Humidity: max 95% (non-condensing)
  • Weight: 12 kg
  • Dimensions (HxWxD): 375 x 214 x 110 mm

Shipping

• Weight: 12 kg

Warranty

• This product comes with a 5-year warranty.
