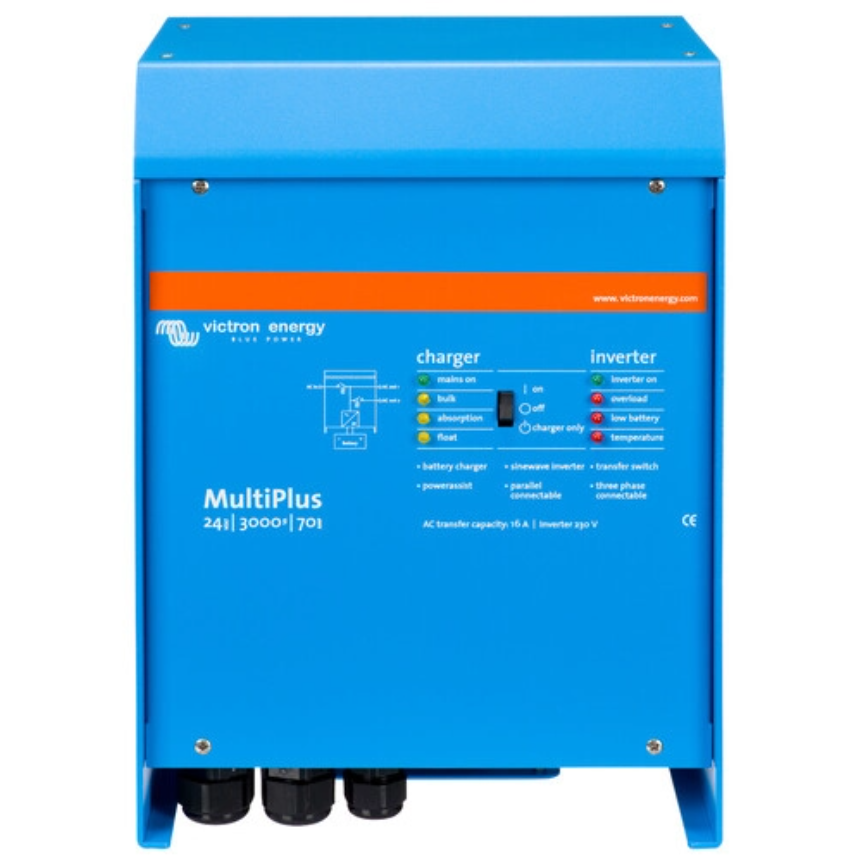

Victron MultiPlus 24/3000/70-16

The MultiPlus 24/3000/70-16 230v is a versatile inverter/charger from Victron Energy. It combines a powerful true sine wave inverter, a sophisticated battery charger with adaptive charge technology, and a high-speed AC transfer switch in a single compact unit. The MultiPlus ensures continuous power supply and efficient power management, making it ideal for a range of applications.

Features

• Two AC Outputs: The main output provides uninterrupted power, taking over supply in less than 20 milliseconds during grid failures or disconnections. The second output is live only when AC is available, suitable for loads that shouldn't discharge the battery.
• Parallel Operation: Up to six MultiPlus units can operate in parallel for higher power output. Three units can be configured for three-phase output.
• PowerControl: Manages limited generator, shore side, or grid power.
• PowerAssist: Supplements the capacity of shore or generator power by adding inverter power when needed.
• Four Stage Adaptive Charger: Adjusts the three-stage automatic process based on the battery's condition and includes an extended float charging stage.
• High Start-up Power: Suitable for high inrush loads such as power converters for LED lamps, halogen lamps, or electric tools.
• Search Mode: Reduces the inverter's power consumption by approximately 70% during no-load operation.
• Programmable Relay: Defaulted as an alarm relay, it de-energizes during alarms or pre-alarms.
• Remote On/Off: Allows remote operation.

Specifications

• Inverter:
  • Input voltage range: 19 – 33 V
  • Output voltage: 230 VAC ± 2%
  • Frequency: 50 Hz ± 0.1%
  • Continuous output power at 25°C: 3000 VA
  • Continuous output power at 40°C: 2400 W
  • Peak power: 6000 W
  • Maximum efficiency: 93 / 94%
  • Zero load power: 20 / 20 / 25 W
  • Zero load power in search mode: 8 / 10 / 12 W
• Charger:
  • Input voltage range: 187-265 VAC
  • Charge voltage 'absorption': 28.8 V
  • Charge voltage 'float': 27.6 V
  • Storage mode: 26.4 V
  • Charge current house battery: 70 A
• General:
  • Operating temperature range: -40 to +65°C (fan assisted cooling)
  • Humidity: max 95% (non-condensing)
  • Weight: 18 kg
  • Dimensions (HxWxD): 362 x 258 x 218 mm

Shipping

• Weight: 18 kg

Warranty

• This product comes with a 5-year warranty.
