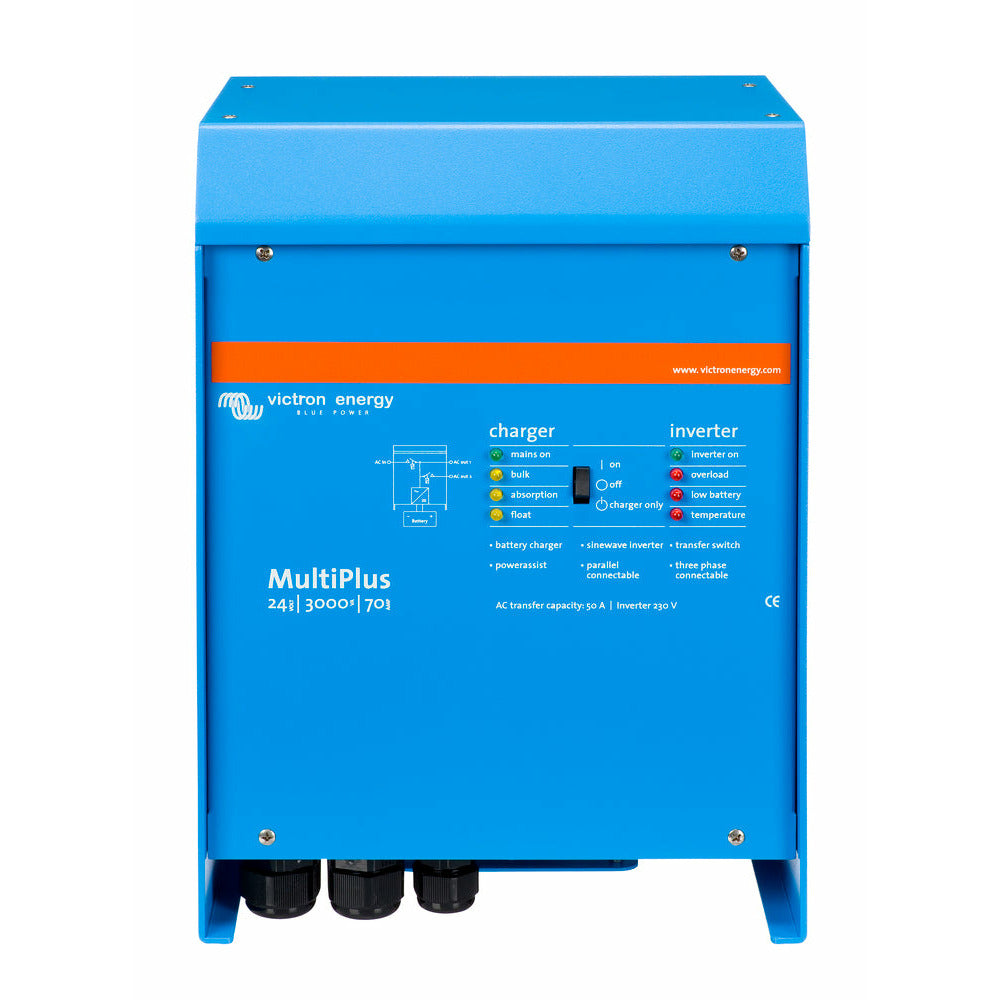

Victron MultiPlus 24/3000/70-50

The MultiPlus 24/3000/70-50 is a powerful inverter/charger from Victron Energy. It seamlessly integrates a robust true sine wave inverter, an advanced battery charger with adaptive charge technology, and a swift AC transfer switch within a single compact unit. The MultiPlus ensures uninterrupted power supply and efficient power management, making it suitable for various applications.

Features

• Two AC Outputs: The primary output offers a no-break functionality, ensuring a swift takeover during grid failures or when shore/generator power disconnects. The secondary output is active only when AC is available on the MultiPlus input, ideal for loads that shouldn't deplete the battery.
• Parallel Operation: Up to six MultiPlus units can operate in parallel for higher power output. Three units can be set up for three-phase output.
• PowerControl: Efficiently manages limited generator, shore, or grid power.
• PowerAssist: Enhances the capacity of shore or generator power by adding inverter power when necessary.
• Four Stage Adaptive Charger: Modifies the three-stage automatic process based on battery health and includes an extended float charging stage.
• High Start-up Power: Suitable for high inrush loads such as power converters for LED lamps, halogen lamps, or electric tools.
• Search Mode: Reduces the inverter's power consumption by approximately 70% during no-load operation.
• Programmable Relay: Defaulted as an alarm relay, but can be reconfigured for other functions.

Specifications

• Inverter:
  • Input voltage range: 19 – 33 V
  • Output voltage: 230 VAC ± 2%
  • Frequency: 50 Hz ± 0.1%
  • Continuous output power at 25°C: 3000 VA
  • Continuous output power at 40°C: 2400 W
  • Peak power: 6000 W
  • Maximum efficiency: 93 / 94%
  • Zero load power: 20 / 20 / 25 W
  • Zero load power in search mode: 8 / 10 / 12 W
• Charger:
  • Input voltage range: 187-265 VAC
  • Charge voltage 'absorption': 28.8 V
  • Charge voltage 'float': 27.6 V
  • Storage mode: 26.4 V
  • Charge current house battery: 70 A
• General:
  • Operating temperature range: -40 to +65°C (fan-assisted cooling)
  • Humidity: max 95% (non-condensing)
  • Weight: 18 kg
  • Dimensions (HxWxD): 362 x 258 x 218 mm

Shipping

• Weight: 18 kg

Warranty

• This product comes with a 5-year warranty.
