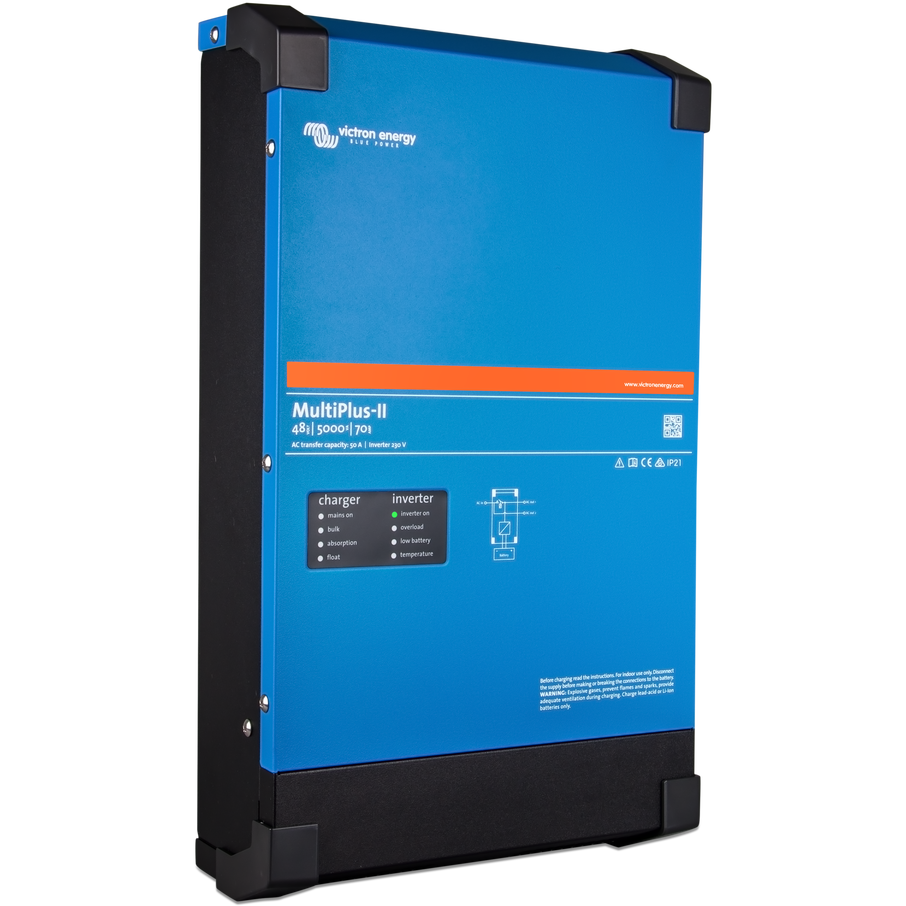

Victron MultiPlus-II 48/5000/70-50

MultiPlus-II 48/5000/70-50 Inverter/Charger

The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 50A resp. 100A. It is ideally suited for professional marine, yachting, vehicle, and land-based off-grid applications. It also has built-in anti-islanding functionality, and an increasingly long list of country approvals for ESS application.

Features

• PowerControl & PowerAssist to boost the capacity of the grid or a generator.
• Solar energy: AC power available even during a grid failure.
• Two AC Outputs: The main output has no break functionality.
• Virtually unlimited power thanks to parallel and three-phase operation.
• On-site system configuring, monitoring, and control.
• Remote configuring and monitoring through VRM Portal.

Specifications

• Inverter
  • DC Input voltage range: 48V – 38-66 V
  • Continuous output power at 25°C: 4000 W
  • Continuous output power at 40°C: 3700 W
  • Peak power: 9000 W
  • Maximum efficiency: 96%
  • Zero load power: 18 W
  • Zero load power in AES mode: 12 W
  • Zero load power in Search mode: 2W
• Charger
  • Input voltage range: 187-265 VAC
  • Charge voltage 'absorption': 28,8 V
  • Charge voltage 'float': 27,6 V
  • Storage mode: 26,4 V
  • Max. battery charge current: 70 A
• General
  • Operating temperature range: -40 to +65°C
  • Humidity (non-condensing): max 95%
  • Weight: 30 kg
  • Dimensions (HxWxD): 607 x 330 x 149 mm

Shipping

• Weight: 30 kg

Warranty

This product comes with a 5-year warranty.
