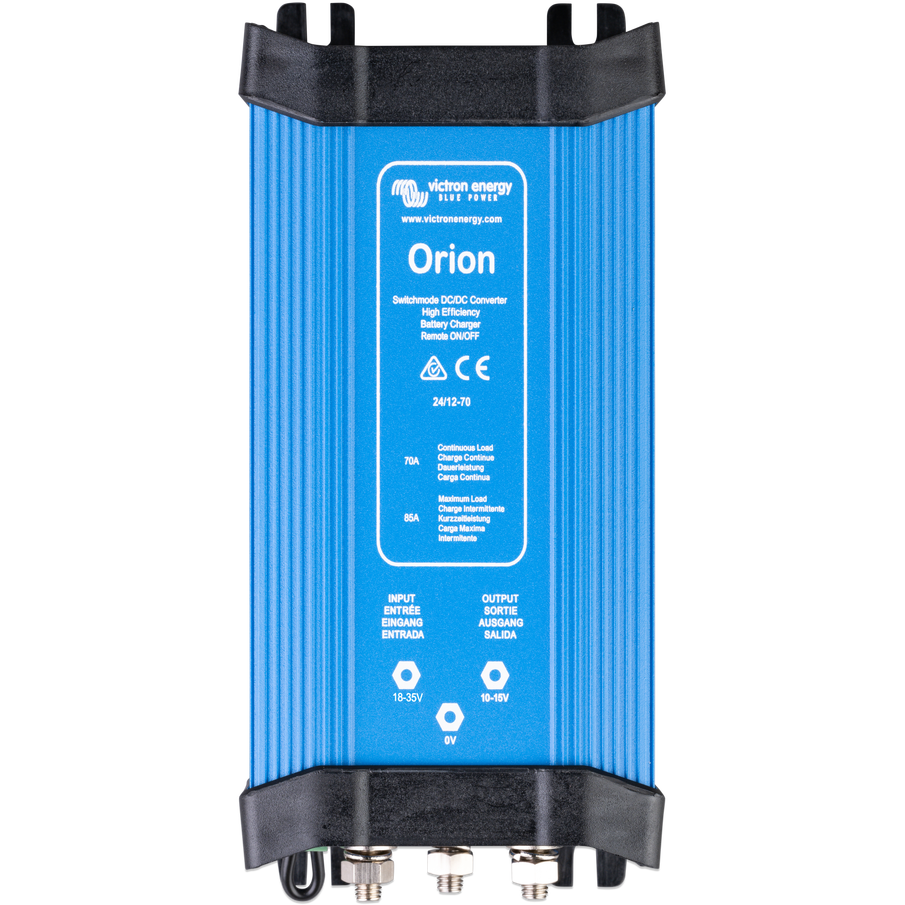

Victron DC-DC Converter Orion 24/12-70A IP20
Regular price
$213.00
Sale price$153.90
/
Tax included.
The Orion 24/12-70A DC-DC converter is a high-power, non-isolated converter designed for efficient power conversion. It comes with a remote on-off connector, eliminating the need for a high current switch in the input wiring. This converter can also be used as a battery charger, especially to charge a 12 Volt starter or accessory battery in an otherwise 24V system. Additionally, up to five units can be connected in parallel to increase output current.
Features
- Remote on-off connector for efficient operation.
- Suitable to buffer-charge a battery.
- Can be connected in parallel to increase output current.
- Fan-assisted cooling (temperature controlled).
- No galvanic isolation.
Specifications
- Input voltage range: 18-35 V
- Under voltage shutdown: 14V
- Under voltage restart: 18V
- Output voltage: Adjustable 10–15V (Factory set at 13.2V)
- Efficiency: 92%
- Continuous output current: 70 A
- Max. Output current: 85 A
- Off-load current: < 20mA
- Remote on-off: Yes
- Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
- DC connection: M6 bolts
- Weight: 0.9 kg
- Dimensions (HxWxD): 65x88x195 mm
Shipping
- Weight: 0.9 kg
Warranty
- This product comes with a 5-year warranty.
