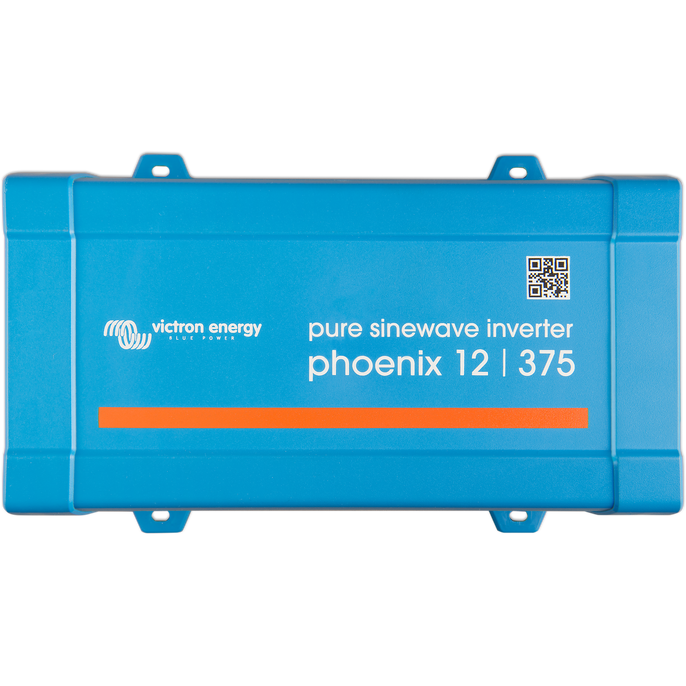

Victron Phoenix Inverter 12/375 230V VE.Direct
The Phoenix Inverter 12/375 230V VE.Direct AU/NZ is equipped with a VE.Direct communication port, facilitating connections to computers, Apple and Android devices, and other devices for comprehensive monitoring and configuration. This inverter boasts a range of fully adjustable settings, including low battery voltage alarm trip and reset levels, dynamic cut-off, output voltage, and frequency settings. With its proven reliability, it features a full bridge plus toroidal transformer topology. Its high start-up power ensures compatibility with various loads, such as power converters for LED lamps, halogen lamps, or electric tools.
Features
- VE.Direct communication port for advanced monitoring and configuration.
- Comprehensive adjustable settings, including dynamic cut-off and output voltage.
- Established reliability with full bridge plus toroidal transformer topology.
- High start-up power to cater to a diverse range of loads.
- ECO mode for optimal energy efficiency.
- Remote on/off capability.
- LED diagnosis for straightforward troubleshooting.
Specifications
- Continuous power at 25°C: 300W (for the 12/375 model)
- Peak power: 700W
- Output AC voltage/frequency: 230VAC or 120VAC +/- 3%, 50Hz or 60Hz +/- 0.1%
- Input voltage range: 9.2 - 17V
- DC low shut down (adjustable): 9.3V
- Dynamic cut-off: Configurable
- Battery charged detect: 14.0V
- Max. efficiency: 89%
- Zero-load power in ECO mode: 5.6W
- Protection features: Output short circuit, overload, battery voltage too high/low, temperature too high, DC ripple too high.
- Operating temperature range: -40 to +65°C (fan-assisted cooling)
- Humidity: Max. 95% non-condensing
- Material & Colour: Steel chassis and plastic cover (blue Ral 5012)
- Battery connection: Screw terminals
- Maximum cable cross-section: 25mm²
- Weight: 3.0kg
- Dimensions (HxWxD): 86 x 165 x 260 mm
- Standard AC outlets: 230V: Schuko, IEC-320, UK, AU/NZ
- Protection category: IP 21
Shipping
- Weight: 3.0kg
Warranty
- This product comes with a 5-year warranty.
