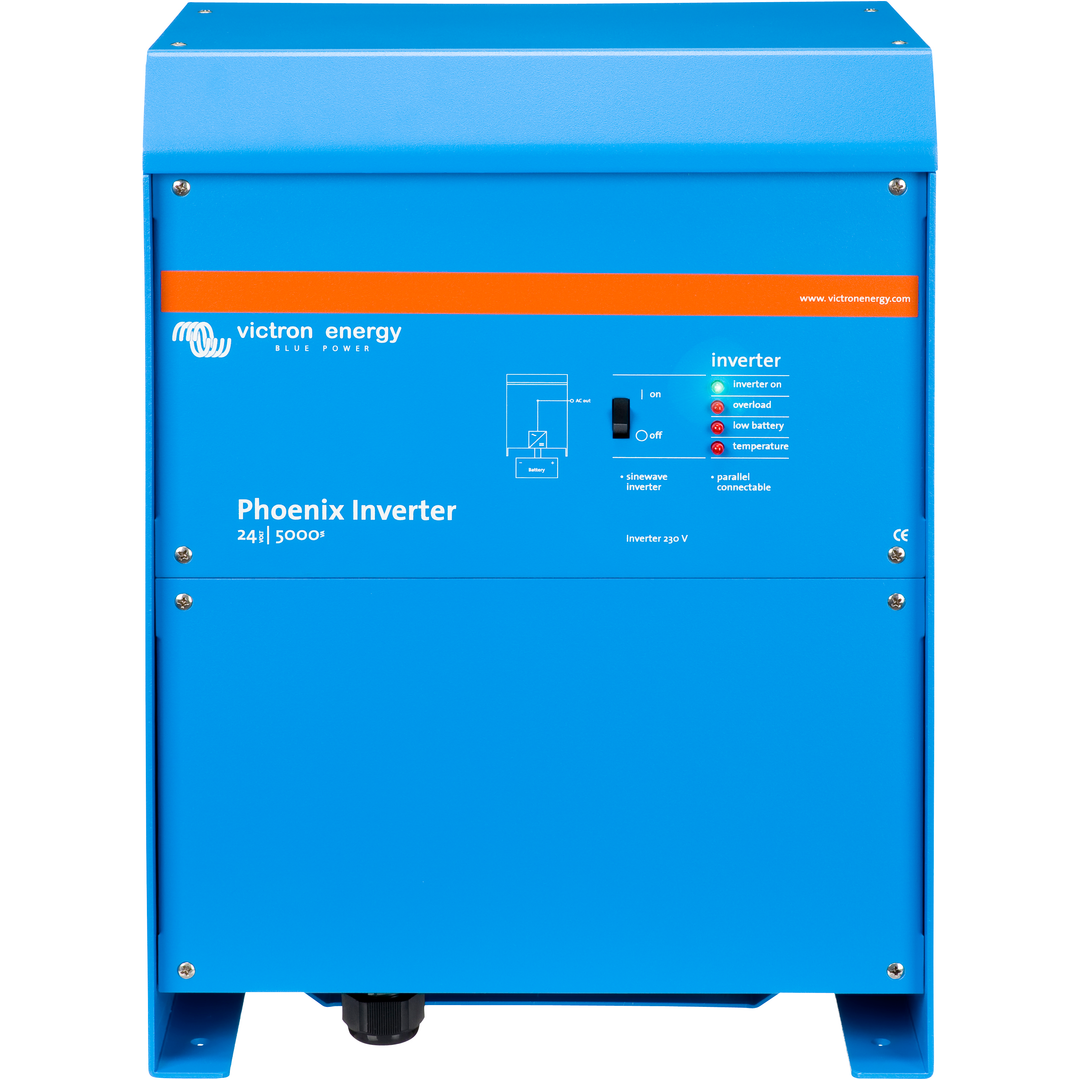

Victron Phoenix Inverter 24/5000 230V

The Phoenix Inverter 24/5000 230V Smart AU/NZ is developed for professional duty and is suitable for a wide range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency without compromising performance. Employing hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight, and capable of supplying power, problem-free, to any load. It offers a unique feature of very high start-up power, making it well-suited to power up difficult loads such as refrigeration compressors, electric motors, and similar appliances.

Features

• VE.Direct communication port for advanced monitoring and configuration.
• Comprehensive adjustable settings, including dynamic cut-off and output voltage.
• Established reliability with full bridge plus toroidal transformer topology.
• High start-up power to cater to a diverse range of loads.
• ECO mode for optimal energy efficiency.
• Remote on/off capability.
• LED diagnosis for straightforward troubleshooting.

Specifications

• Continuous power at 25°C: 4000W (for the 24/5000 model)
• Peak power: 10000W
• Output AC voltage/frequency: 230VAC +/- 2%, 50Hz or 60Hz +/- 0.1%
• Input voltage range: 19 – 33V
• Dynamic cut-off: Configurable
• Max. efficiency: 95%
• Zero-load power: 30W
• Zero-load power in ECO mode: 25W
• Protection features: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, input voltage ripple too high.
• Operating temperature range: -40 to +65°C (fan-assisted cooling)
• Humidity: Max. 95% non-condensing
• Material & Colour: Aluminium (blue RAL 5012)
• Battery connection: 2+2 M8 bolts
• Weight: 30kg
• Dimensions (HxWxD): 444 x 328 x 240 mm
• Protection category: IP 21

Shipping

• Weight: 30kg

Warranty

• This product comes with a 5-year warranty.
