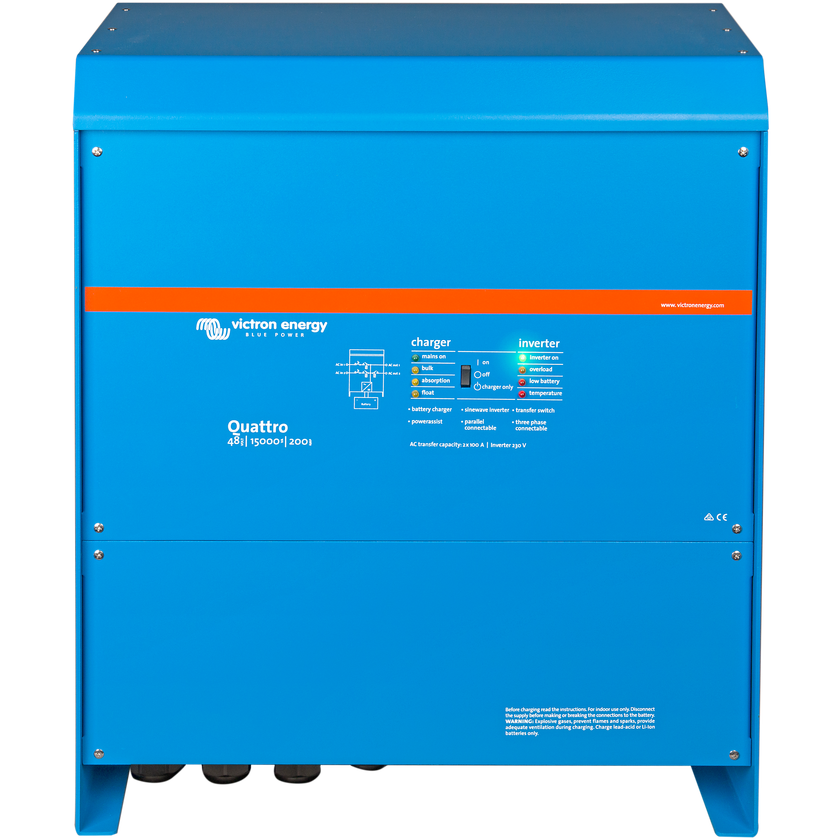

Victron Quattro 48/15000/200-100/100
The Quattro 48/15000/200-100/100 can be connected to two independent AC sources, for example, the public grid and a generator, or two generators. It will automatically connect to the active source. The main output has no-break functionality, ensuring that computers and other electronic equipment will continue to operate without disruption during a grid failure or when shore/generator power is disconnected. The Quattro is also equipped with two AC outputs, a split phase option, and three-phase capability. It can be used in off-grid as well as grid-connected PV and other alternative energy systems.
Features
- Connected to two independent AC sources.
- Main output has no-break functionality.
- Equipped with two AC outputs.
- Split phase option and three-phase capability.
- Suitable for off-grid and grid-connected PV systems.
Specifications
- Input Voltage Range: 187-265 VAC
- Output Voltage: 230 VAC ± 2%
- Frequency: 50 Hz ± 0.1%
- Continuous Output Power at 25°C: 15000 VA
- Peak Power: 25000 W
- Maximum Efficiency: 96%
- Charge Voltage 'Absorption': 57.6 V DC
- Charge Voltage 'Float': 55.2 V DC
- Storage Mode: 52.8 V DC
- Charge Current House Battery: 200 A
- Dimensions: 572 x 488 x 344 mm
Shipping
- Weight: 72 kg
- Dimensions: 572 x 488 x 344 mm
Warranty
This product comes with a 5-year warranty.
