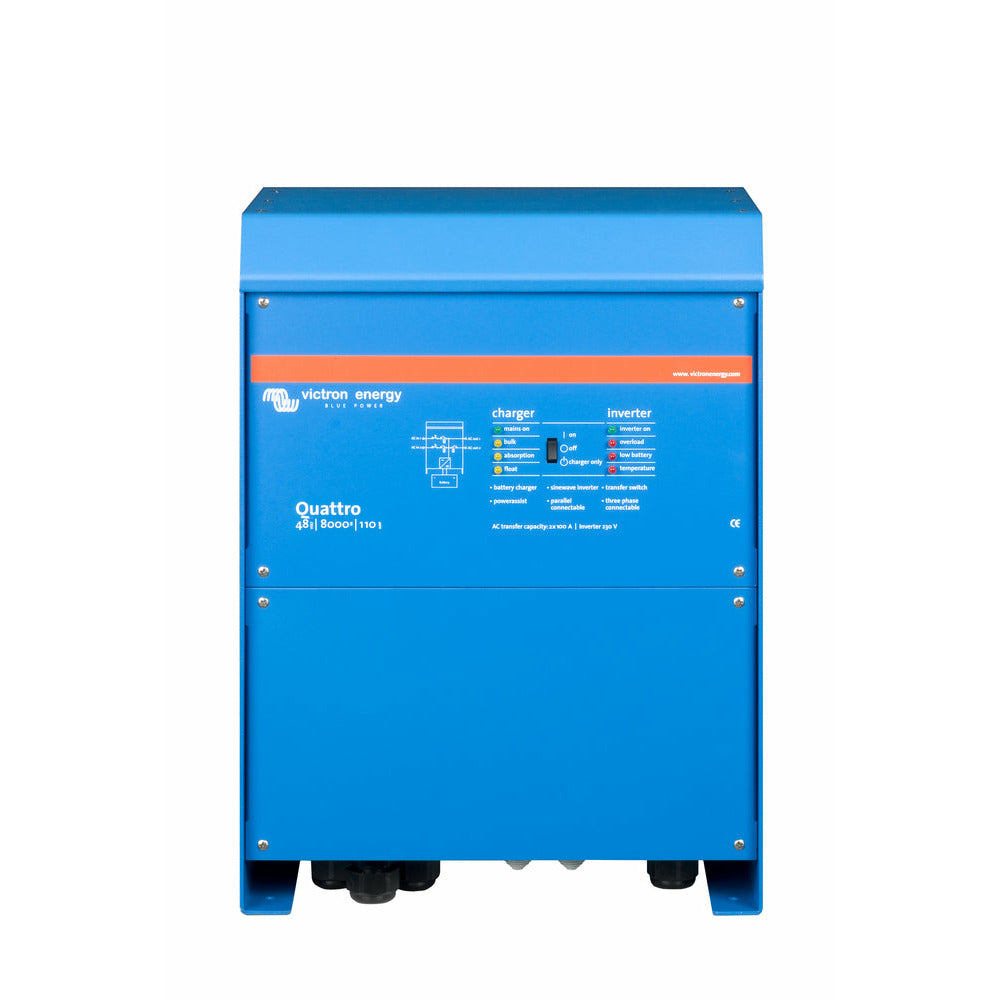

Victron Quattro 48/8000/110-100/100
Regular price
$3,740.00
Sale price$2,984.55
/
Tax included.
The Quattro 48/8000/110-100/100 is a versatile inverter and charger designed for complex electrical systems. It features two AC inputs, one for the main grid and one for a generator, or a second grid. The Quattro will automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features such as three programmable relay outputs and a VE.Bus communication port.
Features
- Integrated Transfer switch with PowerControl / PowerAssist
- Dual AC inputs for main grid and generator or second grid
- True sine wave inverter
- Adaptive charging technology
- Hybrid PowerAssist technology
- Multiple system integration features
- Three programmable relay outputs
- VE.Bus communication port for parallel and three-phase operation, remote monitoring, and system integration
- Two general-purpose communication ports
- Remote on-off capability
Specifications
- PowerControl / PowerAssist: Integrated Transfer switch
- AC inputs (2x): Maximum feed through current 2x100A
- Input voltage range: 9,5 – 17V 19 – 33V 38 – 66V
- Output voltage: 230 VAC ± 2%
- Frequency: 50 Hz ± 0,1%
- Continuous output power at 25°C: 8000VA
- Peak power: 16000W
- Maximum efficiency: 96%
- Zero load power: 60W
- Charge voltage 'absorption': 57,6V
- Charge voltage 'float': 55,2V
- Storage mode: 52,8V
- Charge current house battery: 110A
- Auxiliary output: 50A
- Programmable relay: 3x
- Protection: a-g
- VE.Bus communication port: For parallel and three phase operation, remote monitoring and system integration
- General purpose communication port: 2x
- Remote on-off: Yes
- Operating temperature: -40 to +65°C
- Humidity (non-condensing): max. 95%
- Maximum altitude: 3500 m
- Enclosure Material & Colour: aluminium (blue RAL 5012)
- Protection category: IP 21
- Battery-connection: Four M8 bolts (2 plus and 2 minus connections)
- 230 V AC-connection: Bolts M6
- Weight: 72kg
- Dimensions: 470 x 350 x 280 mm
Shipping
- Weight: 72kg
- Dimensions: 470 x 350 x 280 mm
Warranty
This product comes with a 5-year warranty.
