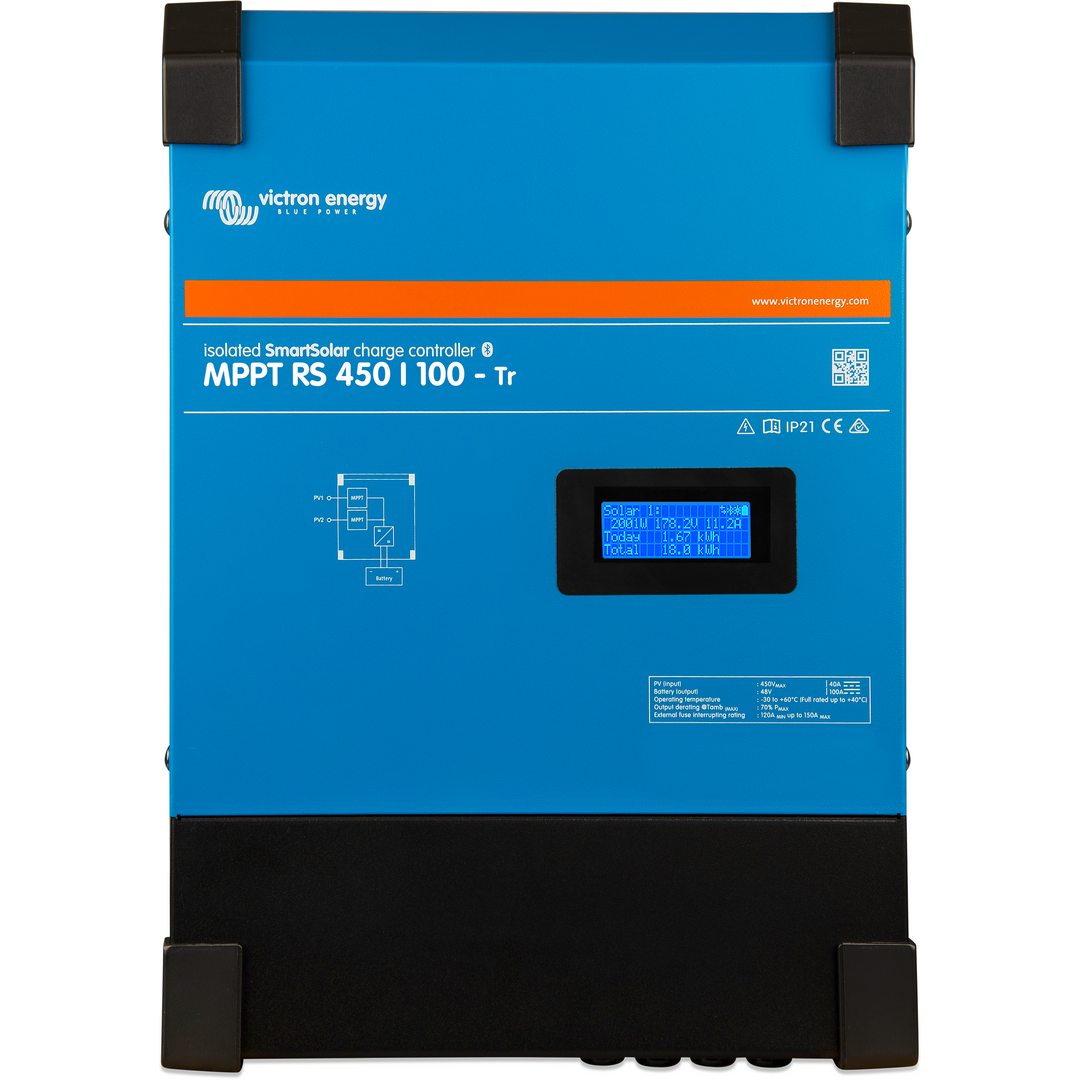

Victron MPPT SmartSolar RS 450/100-MC4
The SmartSolar MPPT RS 450/100-MC4 is a solar charge controller from Victron Energy designed for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid and grid-connected battery systems. With a wide 80-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, and a display screen, it offers a comprehensive solution for advanced solar charging. The modern metal case design and fully covered electrical connections enhance safety and align with the latest suite of Victron products.
Features
- Wide 80-450 VDC operating solar voltage input.
- Independent tracking inputs for enhanced efficiency.
- Full connectivity options for comprehensive system monitoring and control.
- Isolated PV connections for safety.
- Display screen for real-time data and system status.
- Fully programmable battery charging parameters.
- Active cooling ensures the device operates efficiently in various conditions.
- Modern metal case design with fully covered electrical connections for enhanced safety.
- Suitable for large off-grid and grid-connected battery systems.
- Available in 5.76kW and 11.52kW models.
Specifications
- Battery voltage: 48 VDC
- Maximum output current: 100 A
- Maximum PV power: 4500W
- Maximum PV open circuit voltage: 500 VDC
- Maximum efficiency: 98%
- Operating temperature: -20°C to +50°C
- Protection: IP43 (electronic components), IP22 (connection area)
Shipping
- Dimensions (HxWxD): 525 x 275 x 125 mm
- Weight: 7.9 kg
Warranty
This product comes with a 5-year warranty.
