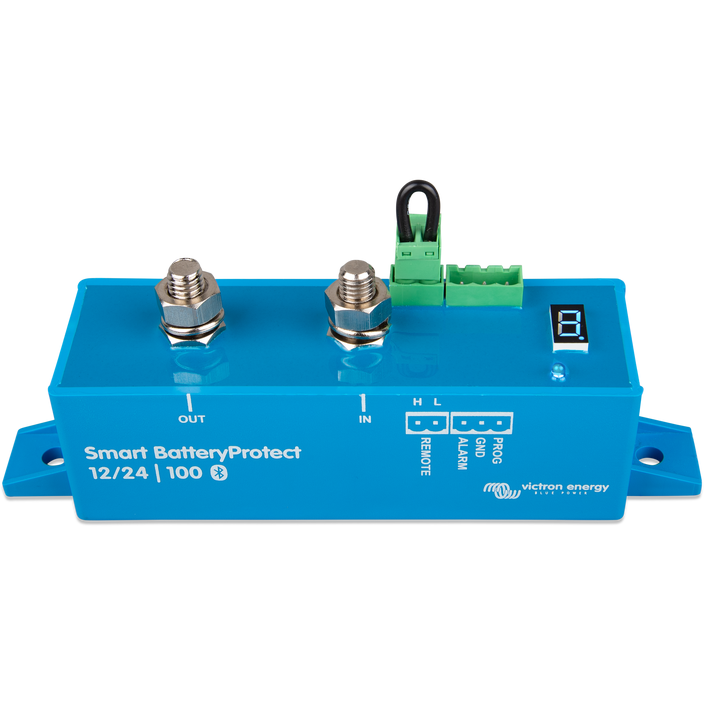

Victron Smart BatteryProtect 12/24V-100A

The Smart BatteryProtect 12/24V-100A from Victron Energy is designed to protect your battery from excessive discharge, ensuring its longevity and performance. This device disconnects the battery from non-essential loads before it's completely discharged, preventing potential battery damage. It can also be used as a system on/off switch. The Smart BatteryProtect is equipped with Bluetooth, allowing for easy programming and setting of engage/disengage levels.

Features

• 12/24 V Auto Ranging: Automatically detects system voltage.
• Bluetooth Connectivity: Enables easy programming and setting of engage/disengage levels.
• Ultra-Low Current Consumption: Important for Li-ion batteries, especially after low voltage shutdown.
• Over Voltage Protection: Protects against damage to sensitive loads due to over voltage.
• Ignition Proof: Uses MOSFET switches, ensuring no sparks.
• Delayed Alarm Output: Activated if the battery voltage drops below the preset disconnect level for more than 12 seconds.
• Delayed Load Disconnect and Reconnect: The load is disconnected 90 seconds after the battery voltage drops below the preset level and reconnected 30 seconds after the battery voltage increases above the preset reconnect voltage.

Specifications

• Model: Smart BatteryProtect 12/24V-100A
• Continuous Load Current: 100A
• Peak Current (30 seconds): 600A
• Operating Voltage Range: 6 –35 V
• Current Consumption (BLE On): When on: 1.4 mA, When off or low voltage shutdown: 0.9 mA
• Current Consumption (BLE Off): When on: 1.2 mA, When off or low voltage shutdown: 0.7 mA
• Alarm Output Delay: 12 seconds
• Load Disconnect Delay: 90 seconds
• Load Reconnect Delay: 30 seconds
• Operating Temperature Range: Full load: -40°C to +40°C
• Protection Category: Electronics: IP67 (potted), Connections: IP00
• Connection: M8
• Dimensions (HxWxD): 61 x 41 x 164 mm

Shipping

• Weight: 0.5 kg

Warranty

This product comes with a 5-year warranty.
