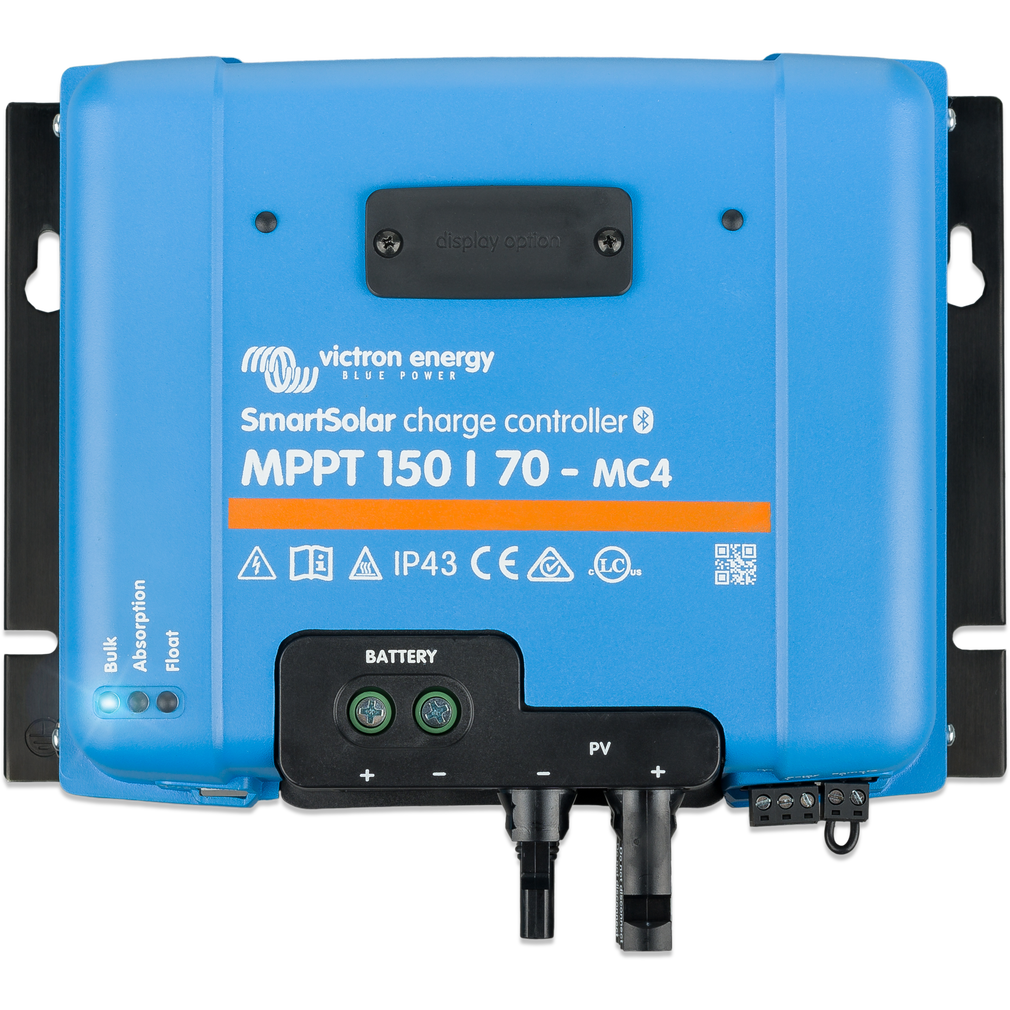

Victron MPPT SmartSolar 150/70-MC4 VE.Can

Harness the power of the sun efficiently with the SmartSolar MPPT 150/70-MC4 VE.Can. This advanced solar charge controller from Victron Energy ensures maximum energy harvest from your solar panels, driving it intelligently to achieve full charge in the shortest possible time. With its ultra-fast maximum power point tracking (MPPT) and advanced features, the SmartSolar MPPT 150/70-MC4 VE.Can is designed to offer superior performance, especially in varying light conditions.

Features

• Ultra-fast MPPT: Maximizes energy harvest, improving energy efficiency by up to 30% compared to PWM charge controllers.
• Advanced MPP Detection: Even in partial shading conditions, ensuring optimal energy harvest.
• High Conversion Efficiency: Exceeding 98% without the need for a cooling fan.
• Flexible Charge Algorithm: Comes with a fully programmable charge algorithm and eight pre-programmed algorithms.
• Extensive Electronic Protection: Offers protection against over-temperature, PV short circuit, PV reverse polarity, and PV reverse current.
• Bluetooth Smart Built-in: Enables wireless setup, monitoring, and updates.
• VE.Can: Allows synchronization of up to 25 units.
• Remote On-off & Programmable Relay: Can be connected to a VE.BUS BMS and programmed for alarms or other events.

Specifications

• Battery Voltage: 12, 24, 48 V Auto Select
• Rated Charge Current: 70 A
• Maximum PV Short Circuit Current: 70 A
• Maximum PV Open Circuit Voltage: 150 V
• Maximum Efficiency: 98%
• Protection: PV short circuit, PV reverse polarity, PV reverse current, Over-temperature

Shipping

• Dimensions (HxWxD): 130 x 186 x 70 mm
• Weight: 3kg

Warranty

This product comes with a 5-year warranty.
