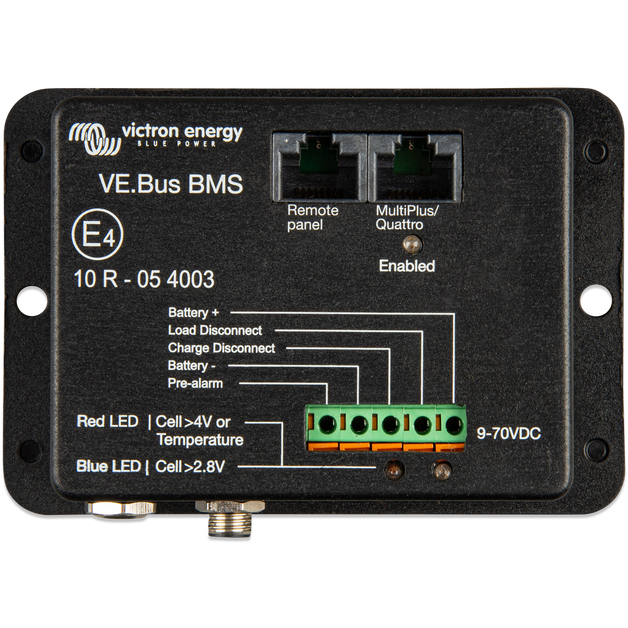

Victron VE.Bus BMS

The VE.Bus BMS is a sophisticated battery management system from Victron Energy. It is specifically designed to protect Victron lithium-iron-phosphate (LiFePO₄) batteries. The BMS ensures that the batteries operate within their safe operating limits, safeguarding them from potential damage due to over-voltage, under-voltage, or over-temperature conditions. With its advanced features, the VE.Bus BMS plays a pivotal role in enhancing the lifespan and performance of Victron's LiFePO₄ batteries.

Features

• Battery Protection: Safeguards the battery from potential damage due to over-voltage, under-voltage, and over-temperature.
• VE.Bus Communication: Enables seamless communication with other Victron devices.
• Remote Monitoring: Compatible with the Victron Remote Management (VRM) portal for monitoring battery status and performance.
• LED Indicators: Provides visual feedback on battery status and potential fault conditions.
• Relay Control: Manages the relay to disconnect or reconnect loads and chargers.
• Enhanced Safety: Ensures that the battery bank is not overcharged or excessively discharged, preventing potential hazards.
• Easy Integration: Designed to work in harmony with Victron MultiPlus and Quattro inverter/chargers, solar chargers, and other devices.

Specifications

• Operating voltage range: 9 - 70 VDC
• Current consumption: 12 mA
• Over-voltage disconnect: 15 V - 67.8 V (adjustable)
• Over-voltage reconnect: 14 V - 66.8 V (adjustable)
• Under-voltage disconnect: 9.3 V - 49.3 V (adjustable)
• Under-voltage reconnect: 10 V - 50 V (adjustable)
• Over-temperature disconnect: 50°C - 70°C (adjustable)
• Over-temperature reconnect: 40°C - 60°C (adjustable)
• Operating temperature: -40°C to +50°C
• Protection category: IP20
• Dimensions (h x w x d): 40 x 120 x 65 mm

Shipping

• Dimensions: 40 x 120 x 65 mm

Warranty

This product comes with a 5-year warranty.
