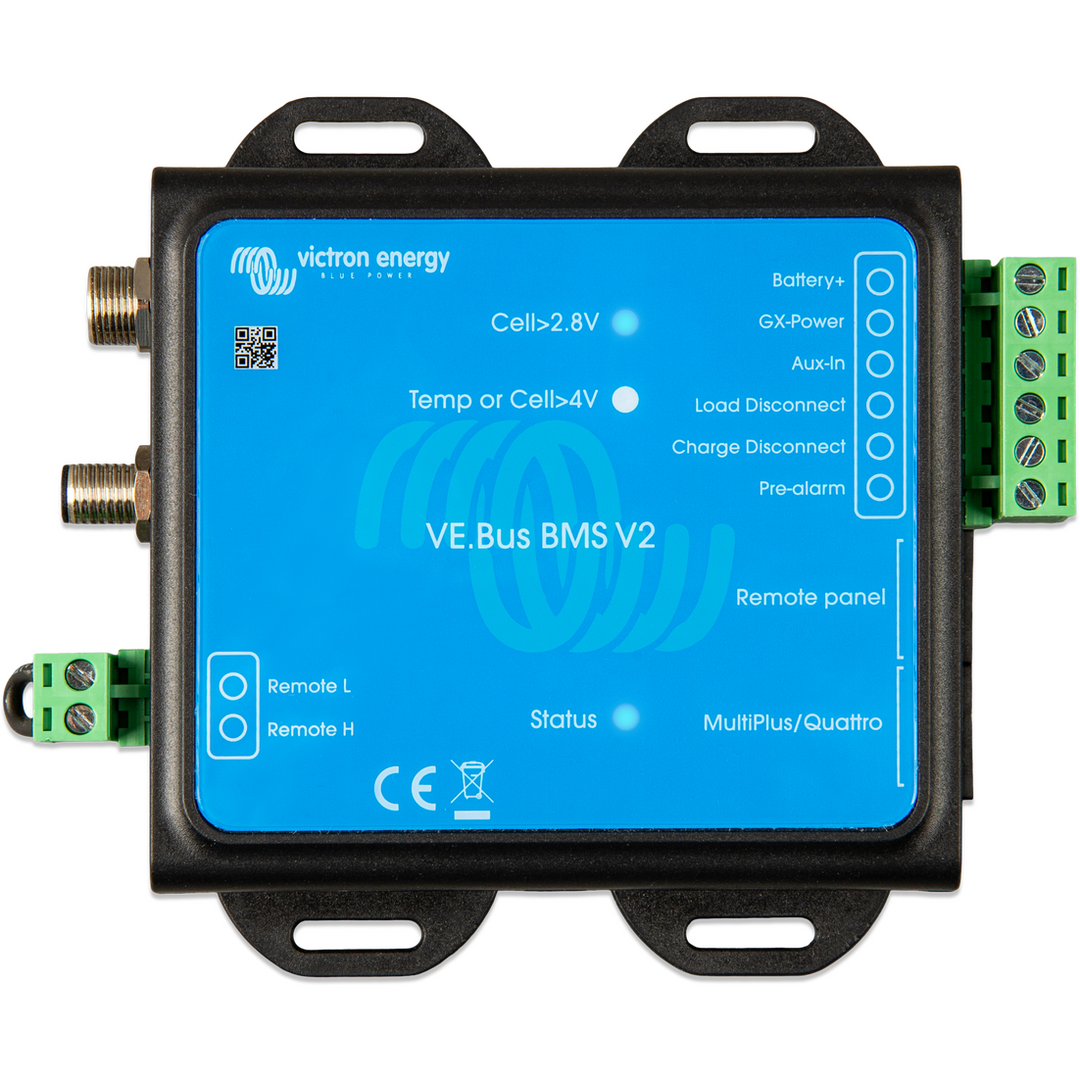

Victron VE.Bus BMS V2

The VE.Bus BMS V2 is an advanced battery management system from Victron Energy, designed to ensure the optimal and safe operation of Victron lithium-iron-phosphate (LiFePO₄) batteries. This upgraded version offers enhanced features and functionalities, ensuring that the batteries operate within their safe parameters. By preventing over-voltage, under-voltage, and over-temperature conditions, the VE.Bus BMS V2 plays a crucial role in maximizing the lifespan and performance of Victron's LiFePO₄ batteries.

Features

• Battery Protection: Protects the battery from potential damage due to over-voltage, under-voltage, and over-temperature.
• VE.Bus Communication: Facilitates seamless communication with other Victron devices.
• Remote Monitoring: Compatible with the Victron Remote Management (VRM) portal, allowing users to monitor battery status and performance.
• LED Indicators: Provides visual feedback on battery status and potential fault conditions.
• Relay Control: Manages the relay to disconnect or reconnect loads and chargers.
• Enhanced Safety: Ensures the battery bank is not overcharged or excessively discharged, preventing potential hazards.
• Easy Integration: Designed to work harmoniously with Victron MultiPlus and Quattro inverter/chargers, solar chargers, and other devices.

Specifications

• Operating voltage range: 9 - 70 VDC
• Current consumption: 12 mA
• Over-voltage disconnect: 15 V - 67.8 V (adjustable)
• Over-voltage reconnect: 14 V - 66.8 V (adjustable)
• Under-voltage disconnect: 9.3 V - 49.3 V (adjustable)
• Under-voltage reconnect: 10 V - 50 V (adjustable)
• Over-temperature disconnect: 50°C - 70°C (adjustable)
• Over-temperature reconnect: 40°C - 60°C (adjustable)
• Operating temperature: -40°C to +50°C
• Protection category: IP20
• Dimensions (h x w x d): 40 x 120 x 65 mm

Shipping

• Dimensions: 40 x 120 x 65 mm

Warranty

This product comes with a 5-year warranty.
