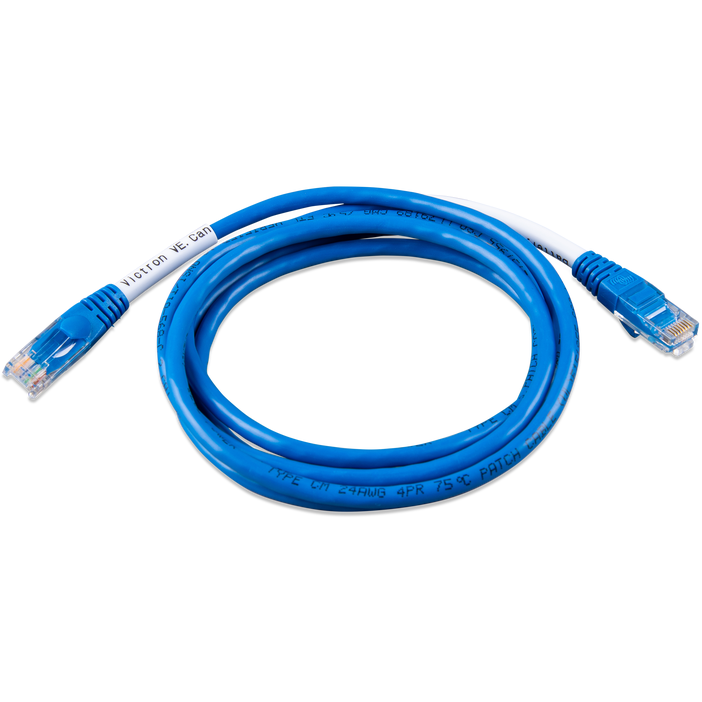

VE.Can to CAN-bus BMS type A Cable 1.8 m

The VE.Can to CAN-bus BMS Type A Cable, measuring 1.8 meters, is designed to connect CAN-bus enabled batteries, not from Victron, to a Victron system. This cable is specifically tailored for batteries such as BYD B-Box and Pylontech models like US2000C, US3000C, UP5000, and Force-L. There are two types of these cables, A and B, and it's essential to choose the right one based on the battery brand.

Features

• Enables connection between CAN-bus enabled batteries and Victron systems.
• Specifically designed for certain battery brands.
• Ensures seamless integration and communication between the battery and the Victron system.

Specifications

• Length: 1.8 meters
• Compatibility: BYD B-Box, Pylontech US2000C, US3000C, UP5000, Force-L

Installation

The side of the cable labeled 'CAN-bus BMS' is designed to plug into the battery. Conversely, the side labeled 'VE.Can' should be plugged into either the VE.Can port of the GX device or the BMS-Can port. Both port types (VE.Can and BMS-Can) on a GX Device can be set up for use with a CAN-bus BMS connected third-party battery. For configuration details, refer to the manual specific to the battery brand being used.

Pin-out
For those who might need to create the cable on-site, the pin-outs are provided:

Type A

• Function - Victron VE.Can side - Battery side
• GND - Pin 3 - Pin 6
• CAN-L - Pin 8 - Pin 5
• CAN-H - Pin 7 - Pin 4

Usage

This cable is essential for those looking to integrate non-Victron CAN-bus enabled batteries with Victron systems. It ensures that the battery can communicate effectively with the Victron system, allowing for optimal performance and monitoring.

Warranty

This product comes with a 5-year warranty.
