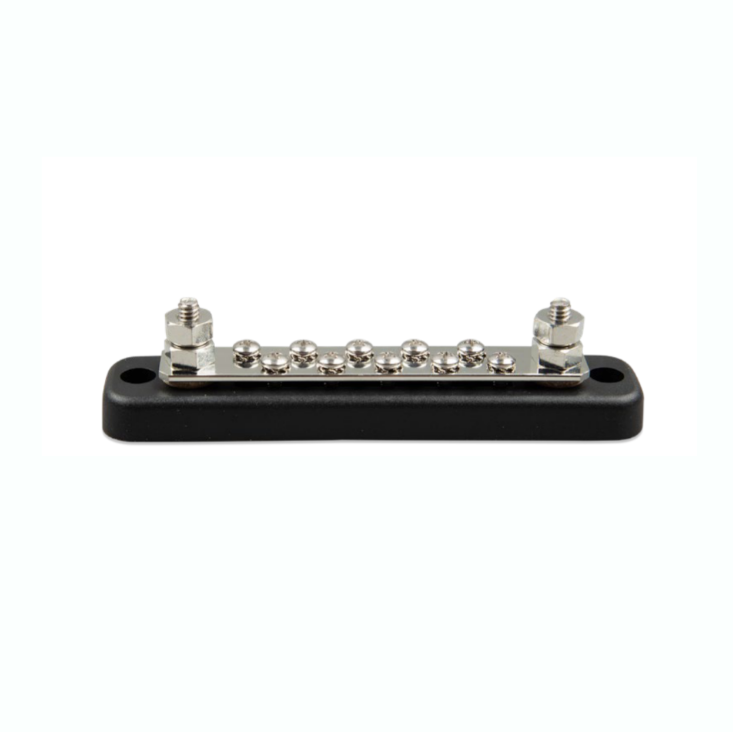

Victron Energy Busbar 150 A 2P with Cover + 10 Screws

A robust, dual-pole busbar assembly designed for demanding DC power distribution systems. Ideal for battery banks, solar installations, marine or off-grid systems, this busbar offers high current capacity, multiple connection points, and a protective cover for safe, neat installations.

Features

• Dual-pole configuration (2P) to handle both positive and negative feeds in one compact unit.

• Rated up to 150 A continuous at DC voltages up to 70 V. Victron Energy

• Available with either 10 or 20 screw terminals for flexible connection count depending on system size. Victron Energy

• Sleek, clear polycarbonate protective cover included to help prevent accidental contact and maintain a clean installation. Victron Energy

• Premium construction: busbar strip made from tin-plated copper (2.4 × 19 mm) for excellent conductivity and low resistance. Victron Energy

• Terminals built from stainless steel with tin-plated copper hex nuts for durability and corrosion resistance. Victron Energy

• Base housing made of ABS (UL 94 V-0) for high flame-resistance; cover is clear polycarbonate (UL 94 HB) giving visual access to connections. Victron Energy

Technical Specifications

• Max. Current: 150 A Victron Energy

• Max. Voltage: 70 V DC Victron Energy

• Terminal Diameter: ¼ inch / 6.35 mm Victron Energy

• Terminal Height: 0.67 inch / 17 mm Victron Energy

• Recommended Torque: 60 lbf-inch / 7 N·m Victron Energy

• Busbar Strip Material: Tin-plated copper (2.4 × 19 mm) Victron Energy

• Weight:

  • 10-screw version: 0.7 lb / 0.3 kg Victron Energy

  • 20-screw version: 2.2 lb / 1 kg Victron Energy

• Dimensions (HxWxD):

  • 10-screw model: 45 × 152.4 × 32 mm (1.8 × 6.0 × 1.25 inch) Victron Energy

  • 20-screw model: 45 × 232 × 32 mm (1.8 × 9.1 × 1.25 inch) Victron Energy

Applications
Perfect for installations where multiple DC feed points are required — such as combining battery strings, distributing power to inverter/charger clusters, solar array sub-busbars, or integrating into modular DC busbar systems. The dual-pole design simplifies wiring and layout, while the protective cover enhances safety and reduces risk of accidental shorts.

Why Choose This Busbar

• Combines high current capacity with modular flexibility (10 or 20 screw options).

• Trusted Victron build quality: durable materials, efficient design, and broad compatibility.

• Clear cover gives both visual inspection capability and enhanced safety.

• Space-efficient form factor for streamlined installations.
